Installing the Product onto a Support Structure/Applicator

To operate correctly, the product must be installed on a support structure or applicator.

The product has five mounting holes on the center frame for installation on a support structure.

Put five bolts through the five holes on the center frame to install the product on the support structure.

• Make sure that you use the designated bolts that can accommodate the weight of the product. If you do not install the product correctly, it could fall out of the support structure, which could cause an injury.

• When installing the product on or removing it from a support structure or applicator, be careful not to get your hands trapped between the product and the support structure or applicator.

　

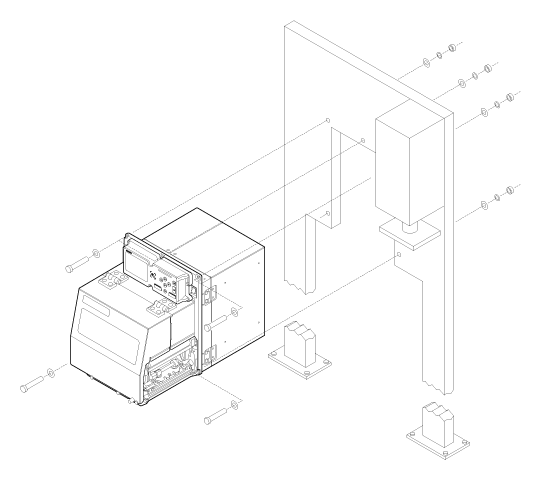

The diagram below shows an example of when the product is installed in the support structure.

• This diagram is for reference only, it does not accurately show the installation method.
