Parts Identification for the Product

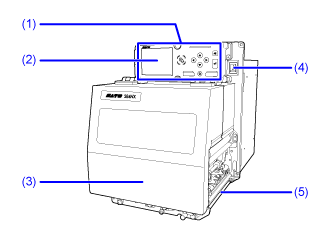

Front View

(1) Operator panel

(2) Display

(3) Top cover

(4) Power (I/O) switch

Press this switch to power on (I) or power off (O) the product.

(5) Media discharge outlet

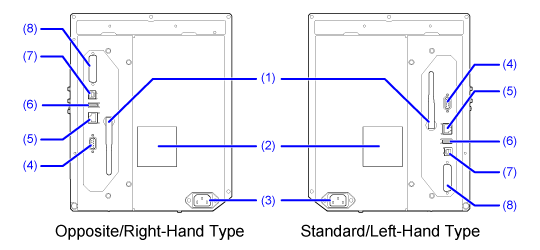

Rear View

(1) Wireless LAN antenna (Optional)

Connector for installation of optional wireless LAN antenna.

(2) Fan filter

To prevent dust from entering the product.

(3) AC input terminal

Supplies power to the product through the inserted power cord.

Before connecting, make sure that the AC voltage of your region is in the range of AC 100 to 240 V, 50 to 60 Hz.

(4) RS-232C connector

To connect the product to the computer using the RS-232C serial interface.

You can also connect a barcode checker.

Usage of the RS-232C interface can be selected in the [Tools] > [Barcode Checker] > [Test] > [Interface] menu.

(5) LAN connector

To connect the product to the network using the LAN interface.

(6) USB connector (Type A)

Enable the storage of product settings information with USB memory.

Also, other devices like a barcode checker, barcode scanner or keyboard can be connected.

• Be sure to perform a virus check on the USB memory before connecting it to the product. SATO Corporation shall not be held responsible for any product malfunctions caused by a virus spread via USB memory.

(7) USB connector (Type B)

To connect the product to the computer using the USB interface.

(8) EXT connector (External signal interface)

Interface connector for external signals. Connect an optional device to this terminal.

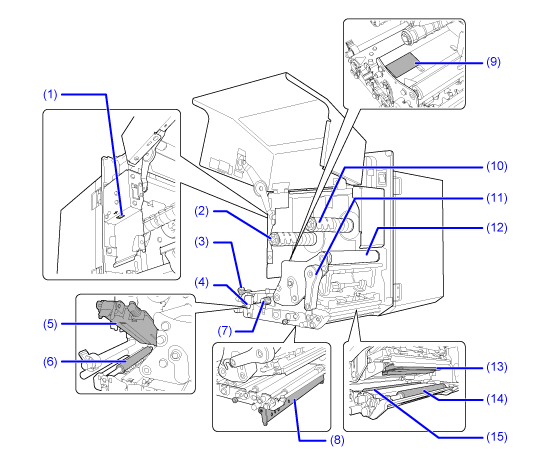

Internal View

(1) USB connector (Type A)

Enable the storage of product settings information with USB memory.

Also, other devices like a barcode checker, barcode scanner or keyboard can be connected.

• Be sure to perform a virus check on the USB memory before connecting it to the product. SATO Corporation shall not be held responsible for any product malfunctions caused by a virus spread via USB memory. • Be sure to insert and remove the USB memory stick perpendicular to the connector.

• The size of the USB memory that can be connected to the side of the product is as follows: ◦ Length: under 68 mm (2.68") (excludes the metal part of the connector) ◦ Width: under 27.6 mm (1.09") ◦ Thickness: under 8.6 mm (0.34")

(2) Ribbon supply spindle

(3) Media guide

(4) Feed lock latch

Used to open the feed roller and media sensor assembly.

(5) Feed roller and media sensor assembly

(6) Feed roller (Consumables)

(7) Media sensor adjustment knob

Used to adjust the position of the media sensor.

(8) Pressure plate (Consumables)

(9) Sticker

The product information, such as model name and serial number, is listed.

The 8-digit alphanumeric characters to the right of "S/N" are the serial number.

(10) Ribbon rewind spindle

(11) Head lock lever

Used to release the print head assembly.

(12) Ribbon roller

(13) Print head (Consumables)

Creates an image directly on the media or by using a ribbon. Clean the print head regularly.

(14) Platen roller (Consumables)

(15) Pressure roller (Consumables)

---
