Setting Value Input or Selection

This topic describes the character and number input on the setting screen and how to select an item from the list.

• You can also input characters and numbers from a USB keyboard by connecting it to the product.

•	Character Input

•	Numeric Input

•	Selection from the List

•	Selection from the Box

•	IP Address Input

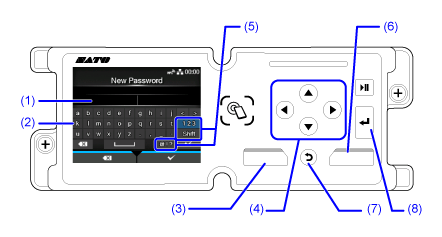

•	Character Input

(1) Text box

(2) Selection area

(3) Delete the character displayed to the left of the cursor in the text box.

(4) Select the character for input using the arrow buttons. The selected character will be highlighted in the selection area.

(5) Change the input mode.

(6) Save the character you enter in the text box and return to the item list.

(7) Cancel the character you enter in the text box and return to the item list.

(8) Enter the selected character into the text box.

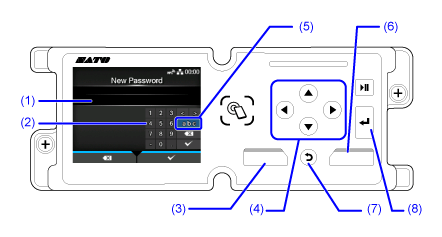

•	Numeric Input

(1) Text box

(2) Selection area

(3) Delete the number displayed to the left of the cursor in the text box.

(4) Select the number for input using the arrow buttons. The selected number will be highlighted in the selection area.

(5) Change the input mode.

(6) Save the number you enter in the text box and return to the item list.

(7) Cancel the number you enter in the text box and return to the item list.

(8) Enter the selected number into the text box.

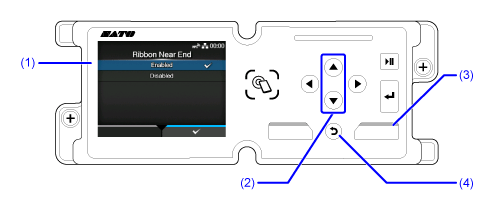

•	Selection from the List

(1) Selection area

(2) Select an item using the / buttons. The selected item will be highlighted in the selection area.

(3) Save the selection from the list and return to the item list.

(4) Cancel the selection from the list and return to the item list.

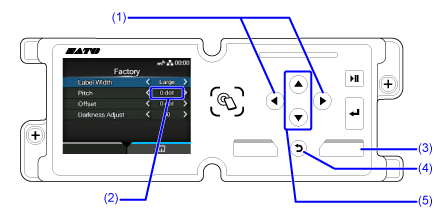

•	Selection from the Box

(1) Change the value in the selection box using the / buttons.

(2) Selection box

(3) Perform the function as shown on the screen.

(4) Return to the previous screen.

(5) Select an item using the / buttons. The selected item will be highlighted in the selection area.

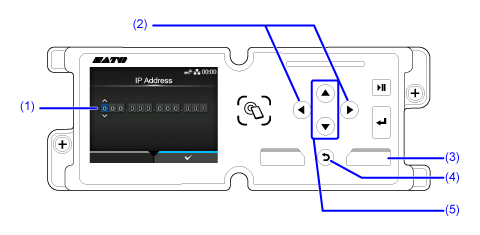

•	IP Address Input

(1) Text box

(2) Select the digit for input using the / buttons.

(3) Save the IP address you enter in the text box and return to the item list.

(4) Cancel the IP address you enter in the text box and return to the item list.

(5) Select the number to input using the / buttons.
