TOP > Various Settings of the Product > The Product's [Settings] Menu > [Printing] Menu > [Advanced] > [Check Media Size]

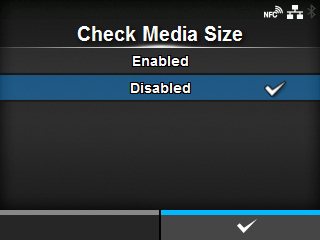

[Check Media Size]
Enable or disable media size check.
Appears if you have selected [Gap] or [I-Mark] in the [Sensor Type] menu.
If this function is enabled, "Media Error" is shown when either of the following conditions applies:
•
If the media is more than 3 mm (0.12") longer than the media length specified with the media size command ESC+A1.
•
If the current media feed length is more than 3 mm (0.12") longer than the media length fed for the first time after this function is enabled.
The options are as follows:
Enabled
Enable media size check.
Disabled
Disable media size check.

•
If you have selected [Cut & Print] in the [Print Mode] menu, media errors do not occur.

Related Topics
[Sensor Type]
[Print Mode]
