TOP > Various Settings of the Product > The Product's [Settings] Menu > [Printing] Menu

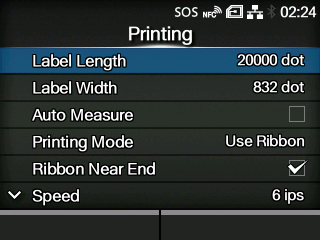

[Printing] Menu
[Label Length]
[Label Width]
[Auto Measure]
[Printing Mode]
[Ribbon Near End]
[Speed]
[Sensor Type]
[Auto-mode]
[Print Mode]
[Backfeed]
[Eject Cut]
[Darkness Range]
[Darkness]
[Imaging]
[Advanced]
The following settings are available in the [Printing] menu:
Label Length
Set the length of the media.
Label Width
Set the width of the media.
Auto Measure
Automatically measure the length of the media.
Printing Mode
Set whether to print using a ribbon or direct thermal media.
Ribbon Near End
Enable or disable the warning when the ribbon is about to run out.
◦
Appears if you have selected [Use Ribbon] in the [Printing Mode] menu.
Speed
Set the print speed.
Sensor Type
Set the media sensor type.
Auto-mode
Automatically set the print mode.
Print Mode
Manually set the print mode.
Backfeed
Set the backfeed operation.
Eject Cut
Set the time from the print completion until the print cut.
◦
Appears if you have selected [Cut & Print] in the [Print Mode] menu.
Darkness Range
Set the range of the print darkness.
Darkness
Set the print darkness.
Imaging
Set the print reference position in the vertical and horizontal directions.
Advanced
Set the sensor operation and print motion.
