TOP > Various Settings of the Product > The Product's [Settings] Menu > [Printing] Menu > [Label Width]

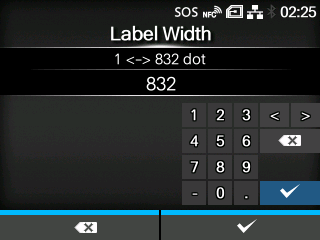

[Label Width]
Set the width of the media.
The setting range varies depending on the print resolution of the product.
The setting range of the label width is as follows:
Resolution
CL4NX
CL6NX
If [Head Base Position] is [Standard]
CL6NX
If [Head Base Position] is [Left-justify]
203 dpi
(1 dot = 0.125 mm (0.0049"))
1 to 832 dots
1 to 1216 dots
1 to 1340 dots
305 dpi
(1 dot = 0.083 mm (0.0033"))
1 to 1248 dots
1 to 1984 dots
1 to 2010 dots
609 dpi
(1 dot = 0.042 mm (0.0017"))
1 to 2496 dots
-
-

•
Set the label size to a value that includes the liner.
