TOP > Various Settings of the Product > The Product's [Settings] Menu > [Printing] Menu > [Imaging]

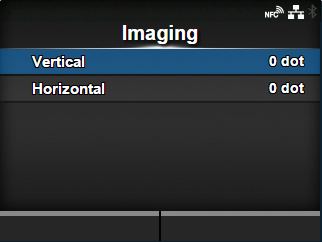

[Imaging]
[Vertical]
[Horizontal]
Set the print reference position in the vertical and horizontal directions.
The setting items are as follows:
Vertical
Adjust the print position in the vertical (feed) direction.
Horizontal
Adjust the print position in the horizontal direction.

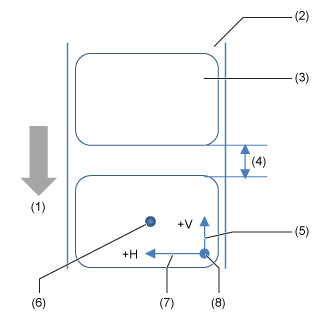

Adjusting direction of the print reference position and base reference point
(1) Feed direction
(2) Liner
(3) Label
(4) Gap between labels
(5) Adjustment of vertical base reference point
(6) Base reference point after adjustment
(7) Adjustment of horizontal base reference point
(8) Print reference position
