TOP > Various Settings of the Product > The Product's [Settings] Menu > [Printing] Menu > [Imaging] > [Vertical]

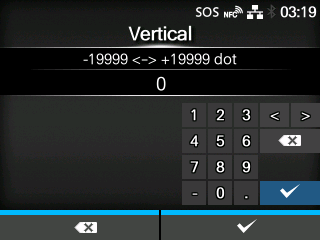

[Vertical]
Set the print position in the vertical direction.
Set the correction value from the standard printing position as "-" for the direction of the paper feed and "+" for the direction opposite to the paper feed.
(1) Feed direction
The setting range varies depending on the print resolution of the product.
The setting range is as follows:
Resolution
CL4NX
CL6NX
203 dpi
(1 dot = 0.125 mm (0.0049"))
-19999 to 0 to 19999 dots
-19999 to 0 to 19999 dots
305 dpi
(1 dot = 0.083 mm (0.0033"))
-17999 to 0 to 17999 dots
-17999 to 0 to 17999 dots
609 dpi
(1 dot = 0.042 mm (0.0017"))
-9599 to 0 to 9599 dots
-
