TOP > Various Settings of the Product > The Product's [Settings] Menu > [Printing] Menu > [Imaging] > [Horizontal]

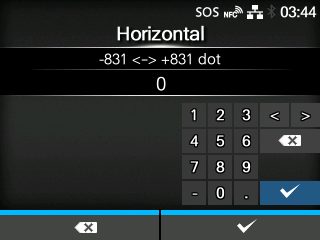

[Horizontal]
Set the print position in the horizontal direction.

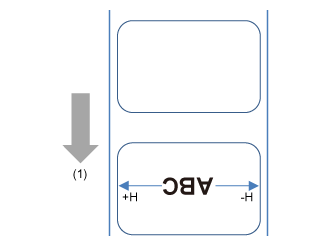

Set the correction value from the standard printing position when facing the product, use "-" to adjust to the right side and "+" to adjust to the left side.
(1) Feed direction
The setting range varies depending on the print resolution of the product.
The setting range is as follows:
Resolution
CL4NX
CL6NX
If [Head Base Position] is [Standard]
CL6NX
If [Head Base Position] is [Left-justify]
203 dpi
(1 dot = 0.125 mm (0.0049"))
-831 to 0 to 831 dots
-1215 to 0 to 1215 dots
-1339 to 0 to 1339 dots
305 dpi
(1 dot = 0.083 mm (0.0033"))
-1247 to 0 to 1247 dots
-1983 to 0 to 1983 dots
-2009 to 0 to 2009 dots
609 dpi
(1 dot = 0.042 mm (0.0017"))
-2495 to 0 to 2495 dots
-
-
