Pressure Balance Setting

After adjusting the head pressure, if media feeding starts to shift to the right side when facing the product, adjust the pressure balance referring to this procedure.

Set the pressure balance according to the media width to be used.

1.	Open the top cover of the product.

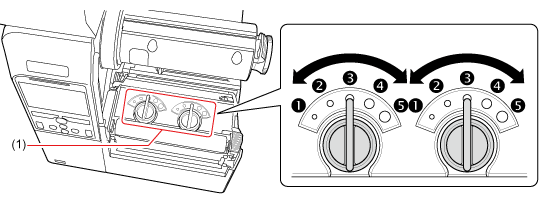

2.	Find the adjustment dials (1) on the top of the print head assembly.

3.	Turn the adjustment dials (1) according to the media width and set the pressure balance.

The table below shows an example of when the head pressure is Left .

For CL4NX Plus:

Media Width (mm (inch))	25 - 54 (0.98" - 2.13")	54 - 83 (2.13" - 3.27")	83 - 131 (3.27" - 5.16")
Adjustment Dials	Left Right	Left Right	Left Right

When Micro Label Print Mode for CL4NX Plus is enabled:

Media Width (mm (inch))	25 - 54 (0.98" - 2.13")	54 - 83 (2.13" - 3.27")	83 - 131 (3.27" - 5.16")
Adjustment Dials	Left Right	Left Right	Left Right

For CL6NX Plus:

Media Width (mm (inch))	50 - 120 (1.97" - 4.72")	120 - 140 (4.72" - 5.51")	140 - 160 (5.51" - 6.30")	160 - 180 (6.30" - 7.09")
Adjustment Dials	Left Right	Left or Right	Left or Right	Left or Right or

When Micro Label Print Mode for CL6NX Plus is enabled:

Media Width (mm (inch))	50 - 90 (1.97" - 3.54")	90 - 130 (3.54" - 5.12")	130 - 180 (5.12" - 7.09")
Adjustment Dials	Left Right	Left Right	Left Right

• The factory default settings of both Left and Right dials are . • For CL6NX Plus dispenser model, the factory default settings of both Left and Right dials are . • The dial setting values in the table are only for reference, and the values may vary depending on the media type. Be sure to check if the print quality is stable by actually printing.

---
