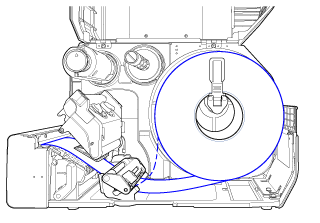

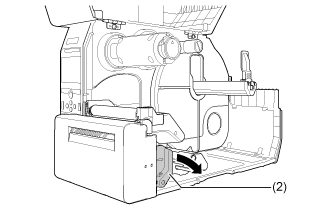

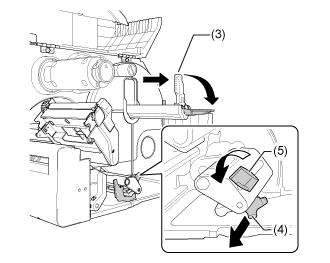

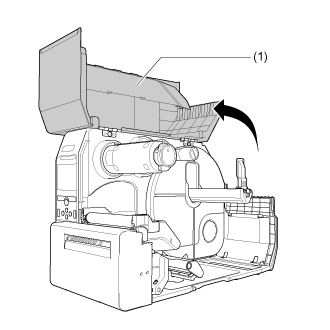

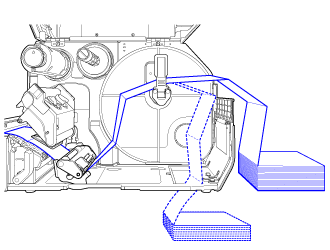

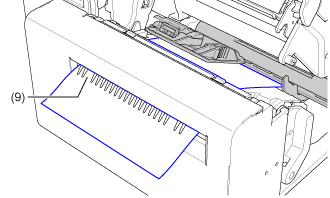

TOP > Loading Media and Ribbon > Loading Media > Loading the Media > Loading the Media with the Optional Rotary Cutter Unit (CL4NX Plus Only) Loading the Media with the Optional Rotary Cutter Unit (CL4NX Plus Only) View the video here (it has no audio). • For Media Roll • For Fan-fold Media • Be careful not to touch the cutter blade. View the video below for the procedure.For Media Roll For Fan-fold Media 1. Open the top cover (1). • Open the top cover fully to prevent accidental drop of the cover.2. Push the head lock lever (2) towards the rear. 3. Pull the media holder guide (3) and media guide (4) away from the product. Turn the knob (5) counterclockwise to release the media guide.4. Load the media roll or the fan-fold media. For Media RollThe routing path of the media is shown in the below picture.Face-in mediaFace-out mediaa. Load the media in the media holder (6). Make sure that the media roll is all the way in towards the inside of the product.b. Push the media holder guide (3) lightly against the media roll. For Fan-fold Mediaa. Place the fan-fold media on a flat location, and then load the media from the rear of the product or from the media slot on the bottom of the product. The routing path of the media is shown in the below picture.Load the media from the rear of the product.Load the media from the bottom of the product. • When loading the media, make sure that the print side faces up.5. Pass the media below the media damper (7) and media sensor guide (8) while pushing the media to inside of the product. 6. Insert the media from inside of the product into the media discharge outlet (9). 7. Press the print head down until the head lock lever is locked. 8. Press the media guide (4) lightly against the end of the media, and then turn the knob (5) to lock the media guide. 9. Close the top cover. • When closing the top cover, be careful not to pinch your fingers.10. Press the button (FEED) in Offline mode to feed the media. 11. Press the button (ONLINE) to change to Online mode. • You need to load the ribbon when printing using thermal transfer.Related TopicsLoading Ribbon (Thermal Transfer Only) Back to top
