Operations in Online/Offline Mode

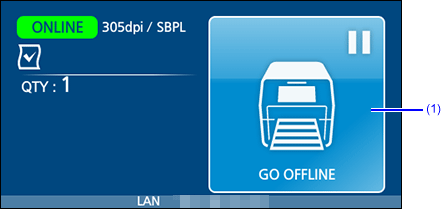

Online mode

In Online mode, you can execute the print job.

In the default settings, the product powers on in Online mode.

If the Home screen is displayed, press the (Power/Home) button to switch to Online mode.

(1) Change to Offline mode.

• You can use the [Printing] > [Advanced] > [Start Online] menu in the Settings mode to set whether the product starts in Online mode or Offline mode when powering on.

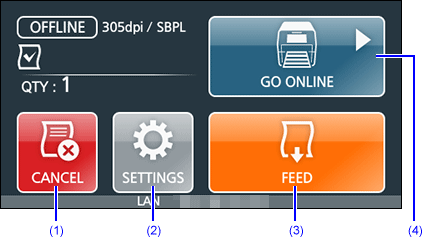

Offline Mode

In Offline mode, the print job will stop.

You can adjust the print settings, cancel the print job or feed the media.

After you complete or cancel the print job, you can show the Settings mode.

(1) Cancel the print job.

Disabled when there are no print jobs.

(2) Shows the Adjustments mode when the print job is paused.

Shows the Settings mode when there are no print jobs.

(3) Feed the media.

(4) Change to Online mode.

Displays Shared in Online/Offline Mode

The following information appears.

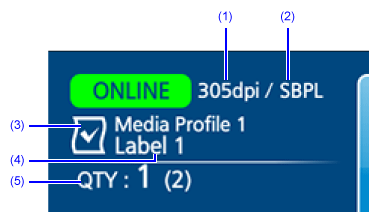

•	Upper left of the screen

(1) Resolution of the product

(2) Current printer language

You can set the printer language in the [Applications] > [Protocol] menu in the Settings mode.

(3) Label Waste Prevention function is enabled

(4) Name of media profile being applied

(5) Number of pages in the print job being processed

When the [System] > [Show Total Count] menu in the Settings mode is enabled, the total number of pages printed from after the power was turned on is shown in parentheses.

•	Bottom of the screen

(6) IPv4 address for the LAN

Appears when connected to a LAN with [Mode] set to [Static] in the LAN settings and the [System] > [Show IP Address] menu enabled.

(7) IPv4 address for the Wireless LAN

Appears when connected to a wireless LAN with [Mode] set to [Static] in the wireless LAN settings and the [System] > [Show IP Address] menu enabled.

• IP address for Wi-Fi Direct connection is not shown.

---
