Loading the Saved RFID Tag Model

By saving SATO RF Analyze results as RFID tag models for each RFID tag you are using, you can easily change the product's settings when you switch RFID tags.

RFID tag models can be selected from the following menu and applied to the product.

•	To apply only an RFID tag model to the product

[Interface] > [RFID] > [RFID Tag Model] > [Load] Menu

•	To apply an RFID tag model and other media settings to the product

[Tools] > [Media Startup] Menu

•	To register an RFID tag model and other media settings to the product as a profile

[Tools] > [Media Profiles Editing] > [Media Profiles Registration] Menu

This topic explains the procedure for reading RFID tag models from the [RFID Tag Model] > [Load] menu.

1.	Tap [SRA Setting] on the Home screen.

• You can also access the SRA settings from the [Interface] > [RFID] menu in the Settings mode.

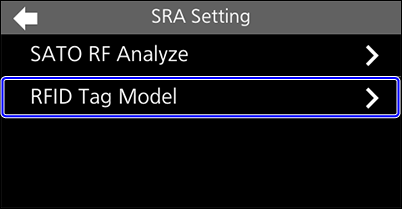

2.	Tap [RFID Tag Model].

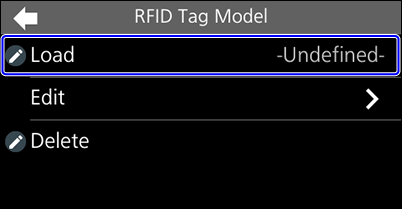

3.	Tap [Load].

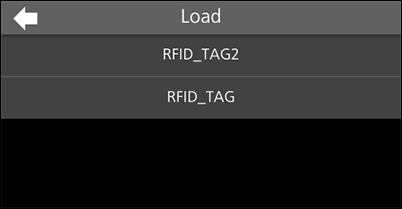

4.	Tap the RFID tag model to load.

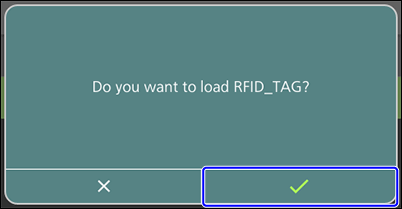

5.	Tap on the confirmation screen.

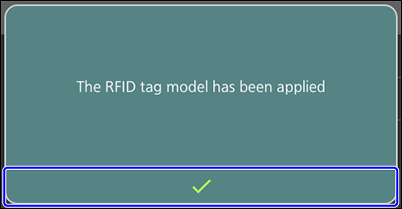

6.	Tap on the completion screen.

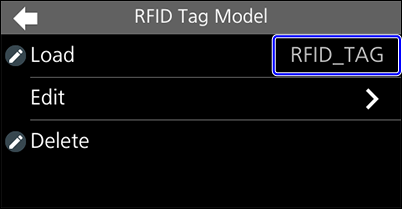

The settings loaded from the RFID tag model are applied to the product. The name of the loaded RFID tag model appears on the right side of [Load] on the [RFID Tag Model] menu.

• From the [RFID Tag Model] > [Edit] menu, you can change settings in registered RFID tag models or manually register new RFID tag models.

---
