Loading the Fan-fold Media

View the video here (it has no audio).

• The print head and its surroundings are hot after printing. Be careful not to get burned. • Touching the edge of the print head with your bare hand could cause injury.

• Fan-fold media is not available in dispenser mode since the perforated line affects the dispenser function.

　

View the video below for the procedure.

1.	Open the media loading port (1) on the back of the product.

2.	Insert the fan-fold media from the media loading port.

(A) Media height (from desk): within 100 mm (3.94")

(B) Distance between the back side of the product and the media: 150 mm (5.91") or more

• When loading the media, make sure that the label side faces up. • The height may be limited depending on where media is placed. • When drawing the media from under the desk, not from the position on the same desk which the rear side of the product is placed, place the media so as not to obstruct the printing operation.

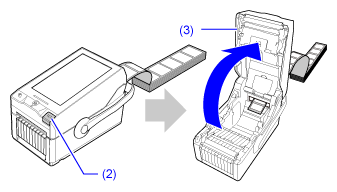

3.	Press the cover open button (2) to open the top cover (3).

4.	Pull out the fan-fold media inserted from the back of the product.

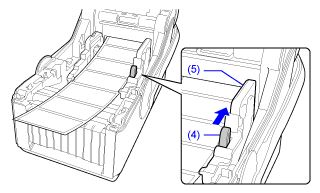

5.	Move the media guide (5) while pressing the slide lever (4), and adjust to the media width.

6.	Close the top cover.

Push both ends of the top cover, and close it firmly until it clicks.

• When closing the top cover, be careful not to pinch your fingers.

7.	Tap [FEED].

The media is fed to the print start position.

8.	Tap [PRINT] to change to Online mode.
