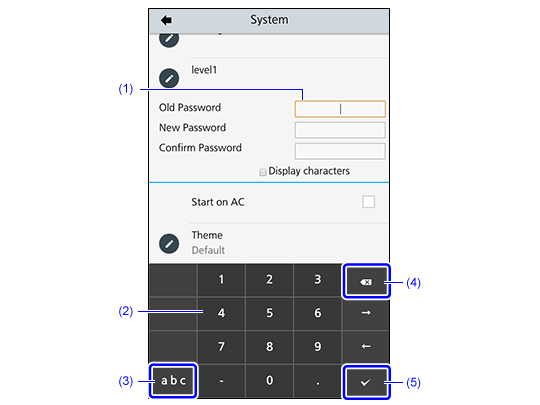

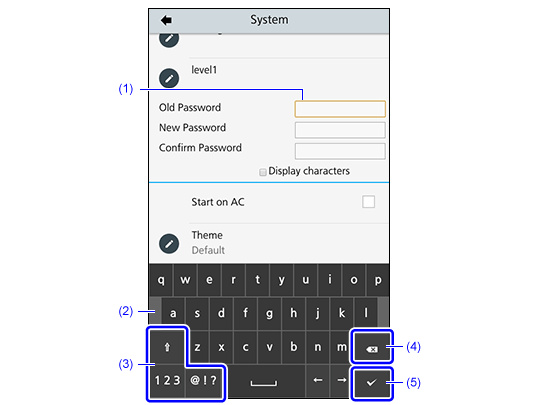

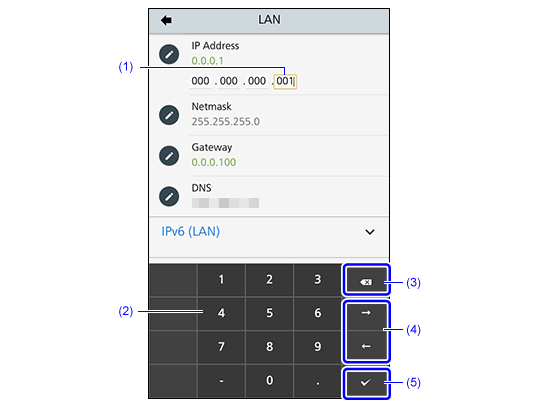

TOP > Basic Information > Using the Operator Panel > Settings Mode > Setting Value Input Setting Value Input This topic describes the character and number input on the setting screen. • You can also input characters and numbers from a USB keyboard by connecting it to the product.• Character Input• Numeric Input• IP Address Input • Character Input (1) Tap the text box to show the on-screen keyboard manually.(2) Tap the on-screen keyboard to input characters. Hold the keys to show special characters.(3) Change the input mode.(4) Delete the character to the left of the cursor indicated in the text box.(5) Confirm what was input.• Numeric Input (1) Tap the text box to show the on-screen keyboard manually.(2) Tap the on-screen keyboard to input numbers. Hold the keys to show special characters.(3) Change the input mode.(4) Delete the number to the left of the cursor indicated in the text box.(5) Confirm what was input.• IP Address Input (1) Tap each text box for input. After three digits are input, the cursor moves to the next text box automatically.(2) Tap the on-screen keyboard to input numbers.(3) Delete the number to the left of the cursor indicated in the text box.(4) Move the cursor to the left or right.(5) Confirm what was input. Back to top
