Changing the Flap Position of the Media Guide
View the video here (it has no audio).
Change the flap position of the media guide in accordance with the core diameter of the media roll. Set it to the upper position when using the φ40 mm (φ1.5") core, or the lower position when using the φ26 mm (φ1") core.

•
When changing the flap position, do not use excessive force. Doing so may damage the product.

•
The flap is set to the lower position after factory shipment. When using the φ26 mm (φ1") core, use it as it is.

View the video below for the procedure.
1.

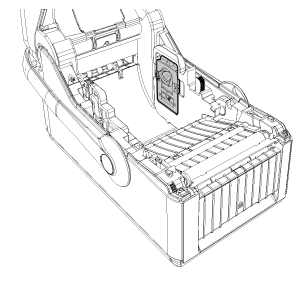

Press the cover open button (1) to open the top cover (2).
2.
Remove the media if it is already loaded.
3.

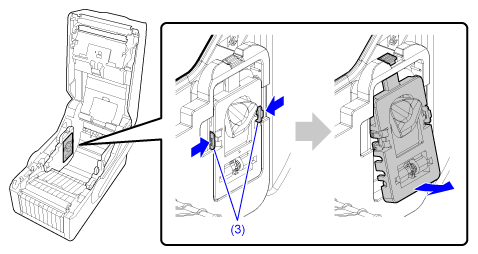

Push the two tabs of the flap (3) inwards and pull them towards the front.

•
The flap can also be removed completely from the media guide.
4.

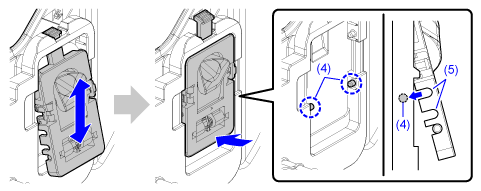

Slide the flap upward when using the φ40 mm (φ1.5") core, or downward when using the φ26 mm (φ1") core. Then insert the groove of the flap (5) into the protrusion of the media guide (4).

•

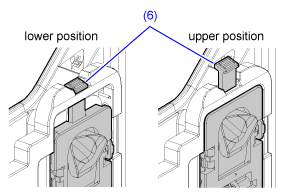

When the left flap is set to the upper position, an indicator (6) pops out. Do not push the indicator in.
5.
Set the other side of the flap to the same position.
