Status Icon

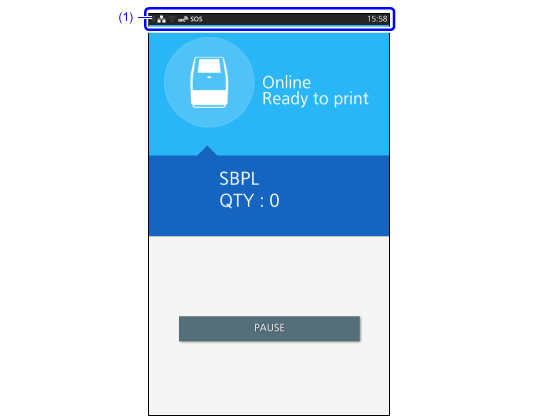

The icons on the status bar of the display show the product status.

(1) Status bar

Communication Interface Status

Icon	Description
	Bluetooth is enabled but not connected.
	Bluetooth is enabled and connected.
	Bluetooth startup failed.
	Network link is enabled but not connected.
	Network link is enabled and connected.
	NFC is disabled.
	NFC is enabled and connected.
	Not connected to the NTP time server.
	Wi-Fi is enabled, but not connected.
	Wi-Fi is authenticated, but not connected.
	Wi-Fi startup failed.
	Wi-Fi is connected. Signal Level: 1
	Wi-Fi is connected. Signal Level: 2
	Wi-Fi is connected. Signal Level: 3
	Wi-Fi is connected. Signal Level: 4
	Wi-Fi Direct is connected or the product is set to act as an access point.
	Product is connected to USB host.
	Standard code is disabled.
	The On-Demand mode of the SOS (SATO Online Services) is enabled.
	The Real Time mode or the Light mode of the SOS is enabled. The product is connected to the SOS cloud.
	The Real Time mode or the Light mode of the SOS is enabled, but not connected to the SOS cloud. If LAN or Wi-Fi icon is grayed out, the product is not connected to the network. If LAN or Wi-Fi icon is active, the Internet connection of the SOS cloud has a trouble.
	The product is not connected to the SOS cloud.
	The periodic notification in the On-Demand mode of SOS as set previously has arrived. Scan the QR code and send the information to the SOS cloud.
	IP address could not be acquired. Or a communication error has occurred.

　

USB Memory Status

Icon	Description
	USB memory is connected.
	Writing data from the USB memory stick.

　

Print Job Status

Icon	Description
	Waiting for media removal. Remove the media.
	Command error detected. Check the print data.
	Receive buffer is nearly full. Wait until the product starts printing the previously sent data, and then send the next data.
	Defective print head is detected. Replace the print head.
	Incompatible print head is detected. Replace the print head.

　

Maintenance Status

Icon	Description
	Clean the print head or platen roller.
	Replace the print head.
	Replace the platen roller.
	Replace the cutter kit.

Battery Status (When Eco Charge Function is Disabled)

Icon	Description
	Shows the remaining battery level in an icon and percent.
	Shows that the battery is charging.
	Shows that the battery is not in a chargeable temperature range and cannot be charged.
	Shows that it is time to replace the battery.

Battery Status (When Eco Charge Function is Enabled)

Icon	Description
	Shows the remaining battery level in percent.
	Shows that the battery is eco-charging.
	Shows that the battery is not in a chargeable temperature range and cannot be charged.
	Shows that it is time to replace the battery.
