Connecting the USB Memory Inside the Product

The USB memory can be connected not only at the back side of the product but also inside the product. When using the product with the USB memory at all times, it is convenient to connect it inside the product.

• The size of the USB memory that can be connected inside the product is as follows. ◦ Length: under 37 mm (1.46") (excludes the metal part of the connector) ◦ Width: under 20 mm (0.79") ◦ Thickness: under 8 mm (0.31")

1.	Press the cover open button (1) to open the top cover (2).

2.	Remove media if it is already loaded.

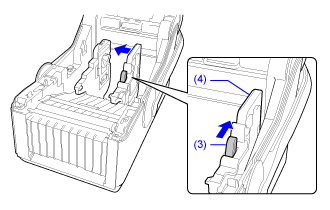

3.	Move the media guide (4), which is on the right, inward while pressing the slide lever (3).

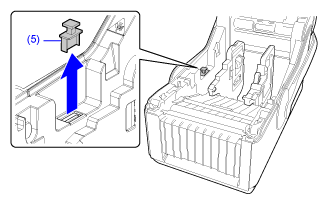

4.	Disconnect the USB connector cover (5).

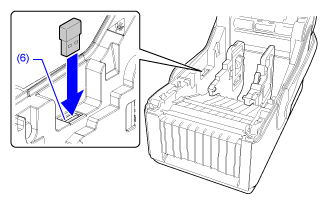

5.	Insert the USB memory into the USB connector (6).

6.	Reload the media if you removed it in step 2.

7.	Close the top cover.

Push both ends of the top cover, and close it firmly until it clicks.

• When closing the top cover, be careful not to pinch your fingers.

• appears on the status bar.
