TOP > Basic Information > Using the Operator Panel > Display and Operation of the Operator Panel > Guidance Videos > Operating the Guidance Video
Operating the Guidance Video

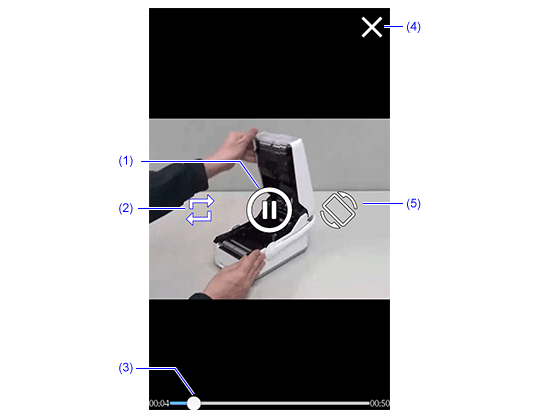

Indication buttons appear when the video is tapped.
(1) Pause or playback the video.
(2) Tap to perform continuous playback.
When this function is active, the icon changes to blue.
(3) Slide or tap the bar to rewind or fast forward the video. Tap the left end of the bar to playback the video from the start.
(4) Close the video.
The video also can be closed by pressing the / (Standby/Home) button.
(5) Tap to switch between full-screen display and normal display.
