TOP > Getting Started > Installation > Installation Space > Front View
Front View
The dimensions of the front view of the product are as follows:

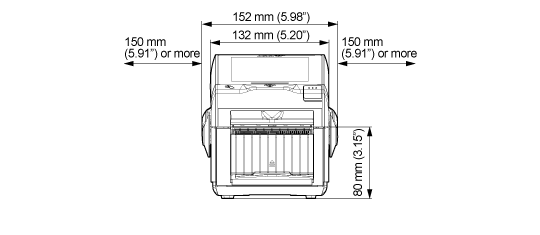

Standard model

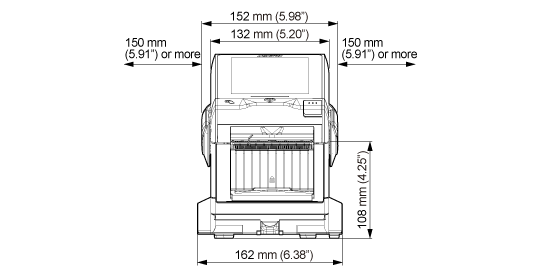

When the product is mounted on the optional battery mount kit and cradle kit
