USB Interface

This interface complies with the USB 2.0 standard.

Install the USB driver to the computer before use.

Basic Specifications
Connector	USB Type B connector
Protocol	• STATUS4 • STATUS5
Power Supply	BUS Power through cable

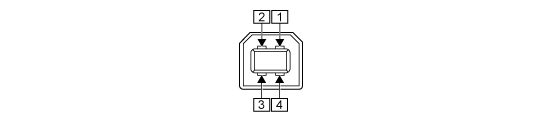

Pin Assignments
Pin No.	Description
1	VBus
2	-Data
3	+Data
4	GND

Cable Specifications
Cable Connector	USB Type B connector
Cable Length	5 m (16.4 feet) or less

• Specifications are subject to change without notice.
