Storing the AC Adapter in the Cradle Kit

View the video here (it has no audio).

• Do not connect or disconnect the power cord while your hands are wet. Doing so could cause an electric shock.

　

View the video below for the procedure.

1.	Lift the cradle kit bottom cover (1) while holding the tabs pressed toward center, then remove it.

2.	Take the cable rewinder (2) from the cradle kit.

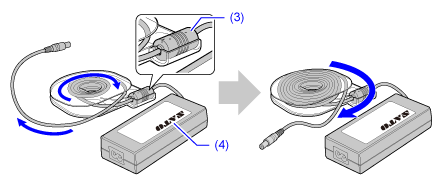

3.	Fix the ferrite core (3) of the AC adapter and wind the AC adapter cord around the cable rewinder.

Wind the cord in the direction of the engraved arrows on the cable rewinder and wind it firmly, leaving no space between cord lines.

Place the AC adapter facing its SATO logo (4) upward.

• Note the following when you wind the AC adapter cord around the cable rewinder. ◦ (A) Do not fold the cord forcibly near the DC output plug. This may damage the cord. ◦ (B) Do not pass the cord over the ferrite core, and do not make the cord go outside the cable rewinder. If you close the cover forcibly, the cord may break by being pinched between the cover and body. ◦ (C) Do not wind the cord loosely. Make sure the whole cord is wound to the cable rewinder.

4.	Store the AC adapter (5) and the cable rewinder (2) wound with the AC adapter cord in the cradle kit.

Store the ferrite core (3) on the upper right of the AC adapter.

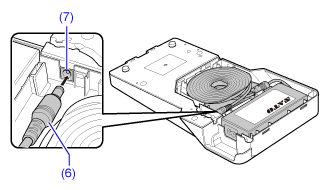

5.	Connect the DC outlet plug (6) to the DC input jack (7) of the cradle kit.

6.	Insert the cover and connect the power cord.

a.	Insert the cover removed in step 1 () and push the tabs downward to secure it in place ().

b.	After making sure that the cover is closed properly, connect the AC output plug (8) of the power cord.

c.	Turn the cradle kit over so that the charging terminal is facing up and connect the power plug (9) to the AC outlet.

• The shape of the power plug varies depending on the region in which it was purchased. • If the cord is caught between the cover and the main unit and the cover cannot be closed properly, perform the processes again from step 3.
