Notes on the Stop/Cut Position of Different Media

Stop Position of the Label in Dispenser Mode

The regular position is to let the label stay about 2 ± 1 mm (0.08" ± 0.04") on the liner.

(1) Feed direction

(2) Dispenser bar

(3) Stop position

Cut Position When Using the Label in Tear-Off/Cutter Modes

The regular cut position is between labels (only cut on the liner).

When you cut the label, the glue adheres to the blade of the cutter and the blade will decrease the performance of the cutter. Adjust the cut position so as not to cut the label.

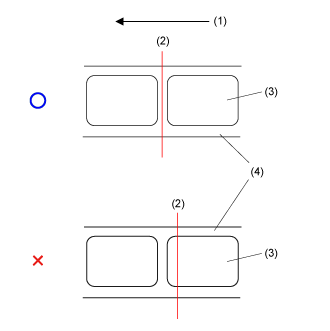

(1) Feed direction

(2) Cut position (I-mark sensor/Gap sensor)

(3) Label

(4) Liner

Cut Position When Using the Media with Perforated Line in Tear-Off/Cutter Modes

For media with perforated lines, adjust the cut position so as not to cut the media on the perforated line or before the perforated line.

When the media is cut on the area not to be cut, it could cause a paper jam or damage.

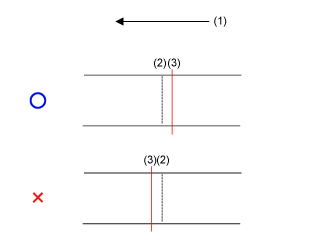

(1) Feed direction

(2) Perforated line

(3) Cut position
