Settings Mode Operations

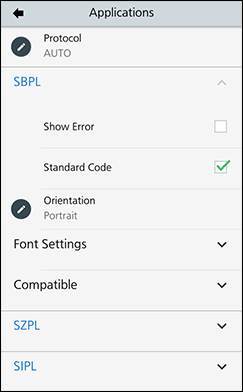

Each menu in the Settings mode contains many layers of submenus, as follows:

The operations differ depending on the following type of setting items.
Display image
Description
Tap the item to open the hidden submenus. Then, changes to .
Tap the item again to hide the submenus.
Select/clear the checkbox by tapping it to enable/disable the function.
Tap the item to show the next layer of the submenus.
Items with a pencil icon are items with changeable values. Tap the setting item to show the detailed options.
If the pencil icon is gray, the value cannot be changed.
Tap an item from the list to select it.
The selected item is highlighted in the list.
There are three ways to adjust the setting value.
•
Tapping /
•
Inputting numbers from the on-screen keyboard
Tap the text box to show the on-screen keyboard
•
Sliding the slide bar directly
Tap to confirm the setting.
Tap the text box to input values from the on-screen keyboard.
Tap each text box to input numbers from the on-screen keyboard.
For items with , setting values can be added by tapping .
Tap to execute items.
Tap to print items such as test prints or configurations lists.
Tap to delete items.
Items with no pencil icon are read-only items.
