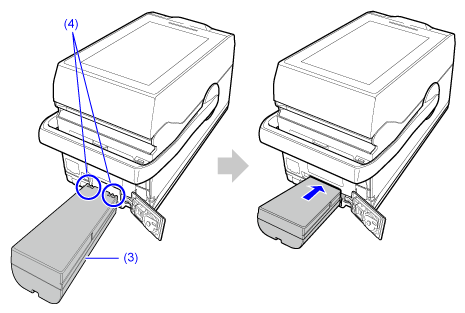

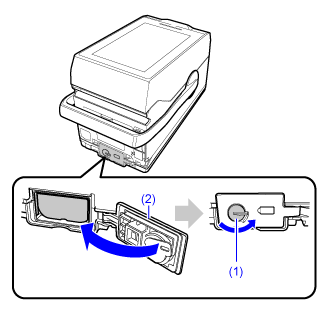

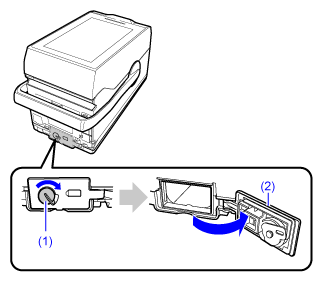

TOP > Getting Started > Powering On/Off the Product > Connecting to Power > Using the Optional Battery Mount Kit/Battery > Inserting the Battery into the Battery Mount Kit Inserting the Battery into the Battery Mount Kit View the video below for the procedure (it has no audio). 1. Open the battery cover of the battery mount kit. a. Turn the lever (1) clockwise. b. Open the battery cover (2). • The battery cover may come off if it is forced opened or if it is hit very hard. Be careful not to force it open.2. Insert the battery (3). Face the battery terminal (4) upward, insert the terminal side of the battery first, and press it all the way in.3. Close the battery cover. a. Close the battery cover (2). b. Turn the lever (1) counterclockwise. • If you open the battery cover to remove the battery, the battery may fall out. Be careful not to injure yourself with the battery. Back to top
