Mounting the Product on the Cradle Kit

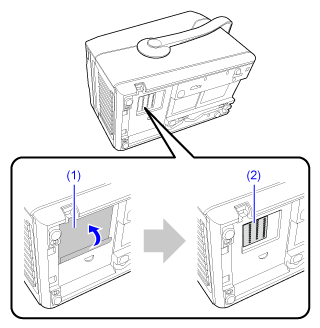

1.	Remove the terminal protection seal (1) on the bottom of the product.

You can now see the charging terminal (2).

• Do not touch the charging terminal with wet hands. • Do not allow the charging terminals to touch metal or foreign objects. • If the charging terminal is dirty, clean the dirt using a dry cloth or a cotton swab. • Do not remove the terminal protection seal on the bottom of the product if you will not be using the optional battery mount kit or cradle kit. • When not using the cradle kit for a long time, disconnect the power plug from the AC outlet.

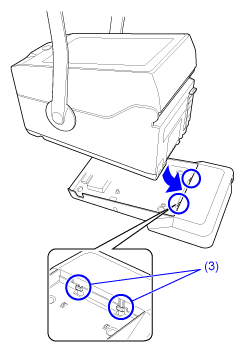

2.	Attach the concave parts on the bottom of the product to the protruding parts of the cradle kit (3).

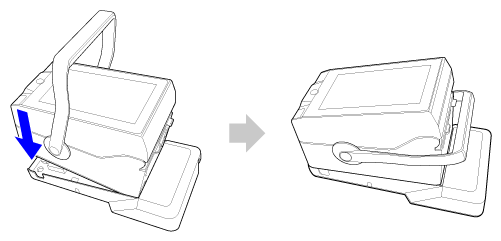

3.	Gently move the front side of the product downwards to place it on the cradle kit.

When the product is placed properly, it is locked in place with a click.

• When mounting the product on the cradle kit, be careful not to pinch your fingers.
