Adjusting the Print Speed

The adjustment of the print speed not only changes the speed of printing but also affects the print quality.

The setting range of the print speed varies according to the following power connecting conditions:

When the AC adapter is connected to the product

2 to 6 ips (inches/sec) (50.8 to 152.4 mm/sec)

When only the optional battery is installed

2 to 4 ips (inches/sec) (50.8 to 101.6 mm/sec)

• When the [Printing] > [Advanced] > [Prioritize] menu has been set to [Commands], the data will be printed with the print speed specified by command. • While the print job is paused, the [Adjustments] menu will appear instead of the [Settings] menu and you can adjust the print speed.

1.	Tap on the Home screen or Offline screen to show the [Settings] menu.

2.	Input the password if it is enabled.

3.	Tap [Printing].

4.	Tap [Speed].

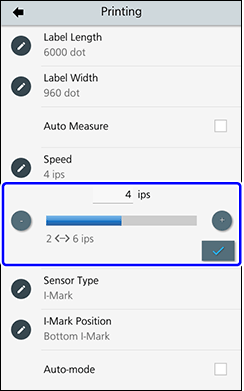

5.	Change the setting value.

The setting range of the print speed is from 2 to 6 ips (inches/sec) (50.8 to 152.4 mm/sec).

• If the optional battery mount kit is installed and you are using the battery, the setting range is 2 to 4 ips (inches/sec) (50.8 to 101.6 mm/sec). • If [Linerless tearoff] is selected in the [Print Mode] menu and you use media that is 20 to 23 mm (0.79 to 0.91") long, set the print speed to 5 ips (127 mm/sec) or less.

6.	Tap to save the setting value.

7.	Press the / (Standby/Home) button to show the Home screen.

8.	Press the / (Standby/Home) button again to change to Online mode.

You can print to check the print quality.

---
