Loading the Fan-fold Media
View the video here (it has no audio).
•
For CL4NX Plus
•
For CL6NX Plus
CL4NX Plus
CL6NX Plus
1.
Open the top cover (1).

•
Open the top cover fully to prevent accidental drop of the cover.
2.

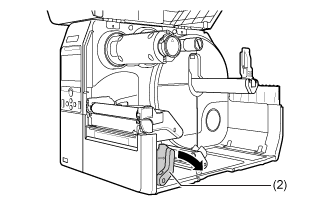

Push the head lock lever (2) towards the rear.
3.
Place the fan-fold media on a flat location, and load the media from the media slot on the rear or the bottom of the product.

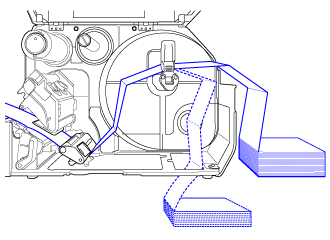

The routing path of the media is shown in the below picture.
Load the media from the rear of the product
Load the media from the bottom of the product.

•
When loading the media, make sure that the print side faces up.
4.
After passing the media through the slot, refer to the same steps as the Media Roll to load the media.

•
You need to load the ribbon when printing using thermal transfer.
•
If a media jam frequently occurs with the media being loaded from the bottom of the product, change the load location to the rear of the product.
