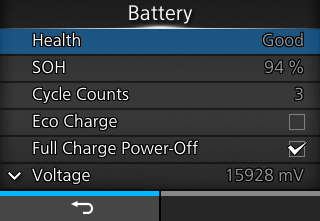

TOP > Various Settings of the Product > The [Settings] Menu > [Battery] Menu [Battery] Menu The following settings are available in the [Battery] menu: [Health]Shows the battery condition.The condition is shown as [Good], [Replace], or [Poor].You cannot change the setting.[SOH]Shows the condition of the battery as a numerical value.You cannot change the setting.[Cycle Counts]Shows the cycle count (charge/discharge cycle).You cannot change the setting.[Eco Charge]Set up the Eco Charge function.The Eco Charge function is designed to extend the battery life by keeping the after-charged volume of the battery a little lower than the fully charged volume, thus delaying the degree of deterioration.The options are as follows:EnabledEnable the Eco Charge function.DisabledDisable the Eco Charge function. • When using the product being set on the 1Bay Charging Cradle (option), [Enabled] is recommended.[Full Charge Power-Off]Set up the product's power-off function after charging is complete.While the product is paused in Online/Offline screen, the product powers off 3 seconds after it completes charging.The options are as follows:EnabledThe product powers off automatically after it completes charging.DisabledThe product does not power off automatically after it competes charging.Conditions to disable the Full-Charge Power-off function◦ While the product is printing or feeding the media.◦ While the product button is being used.◦ During Adjustments or Settings mode.◦ While the product receives the data.◦ If the temperature in the product exceeds the tolerance range (error 1065).◦ When an AC adapter is removed. • When using the product being set on the 1Bay Charging Cradle (option), [Disabled] is recommended.[Voltage]Shows the battery voltage. • When the battery eliminator (option) is installed, the voltage of the dummy battery is shown.[Capacity]The remaining battery level, given the battery's initial fully charged capacity is 100%, is displayed.[Temp]Shows the battery temperature.[Battery Type]Shows the type of battery in use.Related TopicsItem SelectionSetting Value Input or Selection Back to top
[Battery] Menu
