Outputting with Simple Standalone Application

The simple standalone application is preloaded as the initial setting of AEP (Application Enabled Printing) mode.

You can print data saved on a USB memory which is inserted into the USB connecter of the product by using the simple standalone application.

　

Create the label formats for simple standalone printing and output the labels according to the following procedure:

1.	Use label software, such as NiceLabel, Bartender, etc., to create a label format.

• It is recommended to use SATO printer fonts instead of True Type fonts but it is not a requirement. Graphic images are also acceptable to use. • All label objects will be saved as fixed data. It is possible to add variable data to the label format. Contact your SATO sales representative for more information.

2.	Use Print-to-File option to create the SBPL data stream and save the label output you want to use for standalone printing.

• The following extensions are recognized by the product: .ssa, .txt, .prn, .sbpl (if SBPL is enabled), .zpl (if SZPL is enabled). The extensions are case insensitive. It is recommended for the file name excluding extension to be equal or less than 32 characters in order to fully show on the product screen.

3.	Copy the label format file to the root folder of a USB memory.

For compatibility with simple standalone mode on S84-ex/S86-ex, the label format can also be saved to the "/PR61/DATA" folder if SBPL is enabled, and to the "/PR61/SZPL" folder if SZPL is enabled.

• Use a USB memory that are formatted to FAT32.

4.	When the product is in Online mode, press the button on the operator panel to change to Offline mode.

5.	Press the button to show the [Settings] menu.

• Input the password if it is enabled.

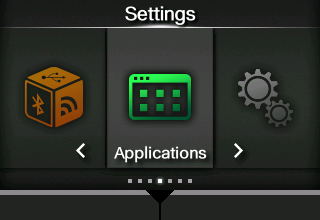

6.	Select [Applications] using the / buttons, and then press the button.

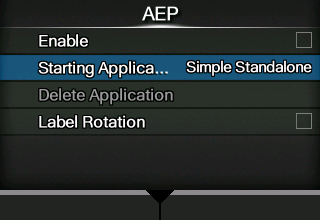

7.	Select the [AEP] > [Starting Application] menu using the / buttons, and then press the button.

If some applications have already been loaded in this product, select [Simple Standalone] using the / buttons, and then press the button.

• The simple standalone application is pre-loaded into the product and cannot be removed.

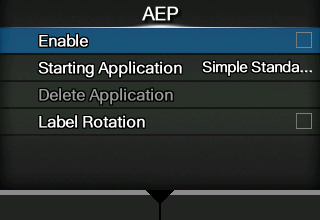

8.	Enable AEP mode by selecting the [Enable] menu and reboot the product to apply the settings.

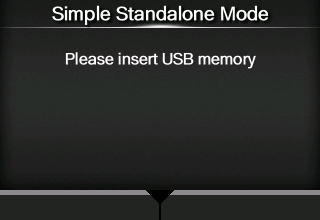

After reboot, the following screen appears.

9.	Insert the USB memory into the appropriate location in the product.

Use the USB memory to which the label format file was copied in step 3.

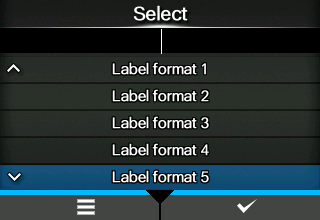

10.	Select the format with the / buttons, and then press the button or the button.

The screen shows a list of files without extensions which are stored on the USB memory.

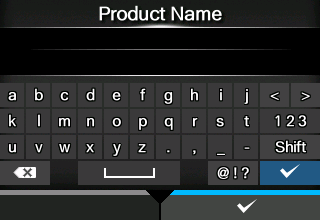

11.	If the format contains a variable, enter the variable with the on-screen keyboard or a USB scanner, keyboard or keypad connected to the product.

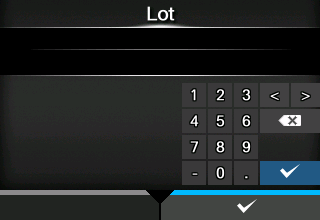

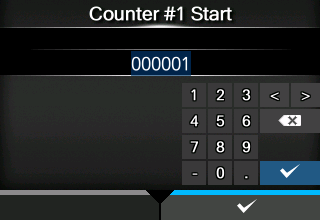

12.	If the format contains a counter, enter the start value of the counter with the on-screen keyboard or a USB scanner, keyboard or keypad.

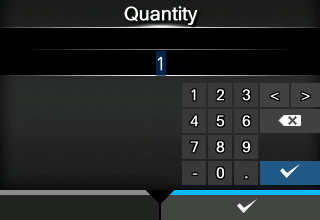

13.	Enter the print quantity to start printing the label format.

• Once printing has started, the USB memory can be removed. The USB memory will be required when starting the next print job. Click the button to reload the USB memory content.

---
