Continuous Mode, with Media Sensor Disabled, and with Pulse Input

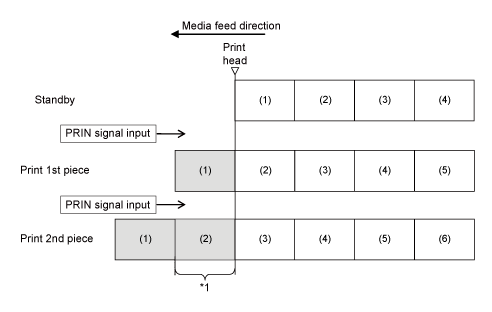

Operation

*1 The product will feed the actual vertical print size of media. However, if you specify the End Position (<EP>) command, the product will feed the specified vertical size of media.

• The spaces between each layout varies depending on the print speed. In the figure above, as you set the print speed faster, the space between the first and second print becomes wider.

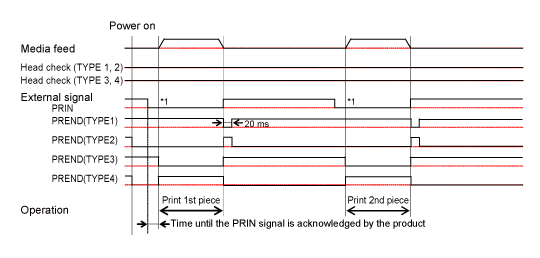

Timing Chart (Without Head Check)

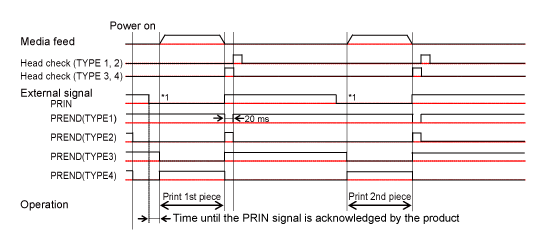

Timing Chart (With Head Check)

*1 Keep the PRIN (Print Start) signal until the PREND (Print End) signal is outputted.

• Do feeding while pressing the button in the Offline mode. However, the PREND (Print End) signal will not change.

---
