Print Method (Combined Direct Thermal/Thermal Transfer Model Only)

TOP > Loading Media and Ribbon > Settings to Match the Media > Print Method (Combined Direct Thermal/Thermal Transfer Model Only)

Print Method (Combined Direct Thermal/Thermal Transfer Model Only)

For the combined direct thermal/thermal transfer model, you can select from two types of print methods.
Thermal transfer
Prints using a ribbon.
Direct thermal
Prints using direct thermal media.

•
Ribbon is not necessary if you are using direct thermal media.
　
You can set the print method by using the startup guide. Alternatively, the following procedure can be used.

1.
Press the button or button in Online mode.
The product changes to Offline mode.
2.
Press the button.
The product changes to Settings mode.

•
Input the password if it is enabled.
3.

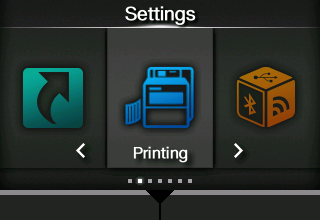

Select [Printing] using the / buttons.
4.
Press the button.
The item list appears.
5.

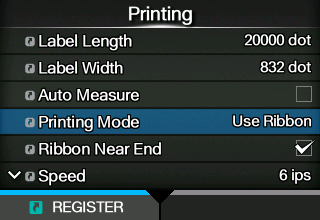

Select [Printing Mode] using the / buttons.
6.
Press the button.

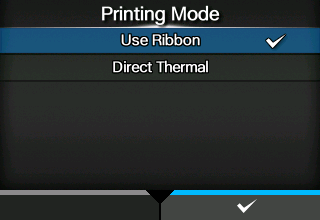

The [Printing Mode] screen appears.
7.
Select the print method using the / buttons.
[Use Ribbon]
Prints using a ribbon.
[Direct Thermal]
Prints using direct thermal media.
8.
Press the button to confirm.
