Startup Guide Flow

The startup guide is a function to help you through the initial product settings (language selection, date and time settings, loading the ribbon and media, etc.).
You can cancel the startup guide and perform the configuration later from the menu.

•
Select choices for each item with the / buttons, and apply them with the button or button.
•
Selecting a choice opens the next screen. To return to the previous screen, press the button.

1.
Press the power (I/O) switch to "I" position to power on the product.
The startup guide screen appears.
2.

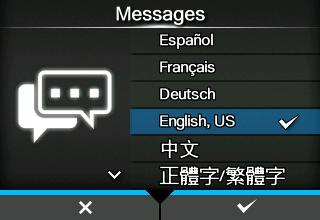

Select the display language.
3.

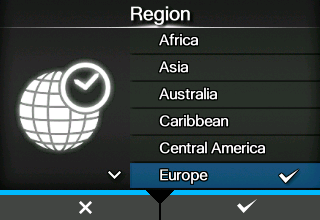

Select the region to set for the time zone.
4.

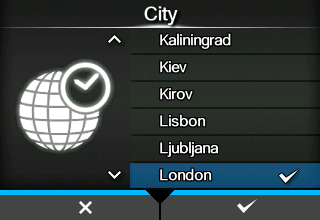

Select the city to set for the time zone.
5.

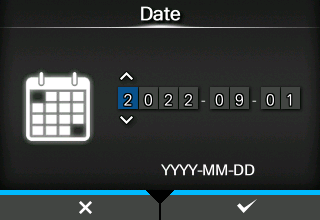

Select the current year, month, and date.
When the confirmation screen appears, press the button to confirm the settings.
6.

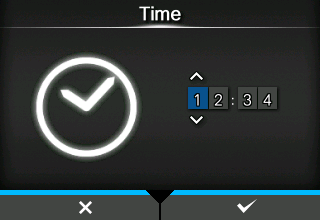

Select the current time.

•
The time is set in the 24-hour format.
When the confirmation screen appears, press the button to confirm the settings.
7.

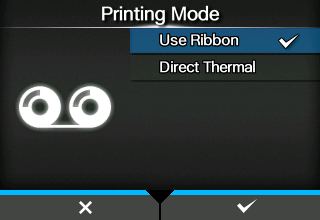

Select the print method to use.
(Available only for the combined direct thermal/thermal transfer model.)
[Use Ribbon]
Prints using a ribbon.
[Direct Thermal]
Prints using direct thermal media.
8.

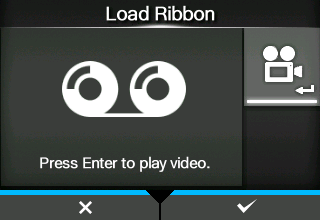

Load the ribbon while checking the video.
a.
Press the button.
The video starts playing.
b.
When you have finished loading the ribbon, press the button to stop the video.
Returns to the screen that was open before the video played.
c.
Press the button.
9.

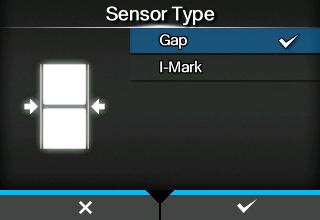

Select the sensor type for detecting the media.
[Gap]
Select when using the media of Gap type. Use the transmissive sensor.
[I-Mark]
Select when using the media of I-mark type. Use the reflective sensor.
10.

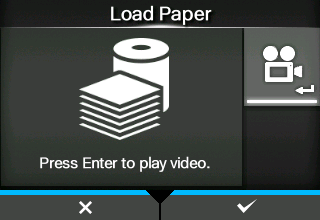

Load the media while checking the video.
a.
Press the button.
The video starts playing.
b.
When you have finished loading the media, press the button to stop the video.
Returns to the screen that was open before the video played.
c.
Press the button.
The confirmation screen appears.
11.

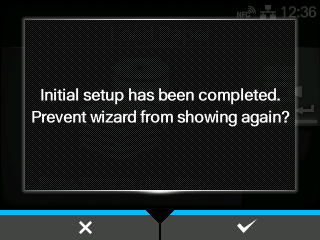

To show the startup guide the next time the product is started, press the button. To not show it, press the button.

•
You can set whether to open the startup guide the next time you start up the product in [Startup Guide] in the [Tools] menu.
