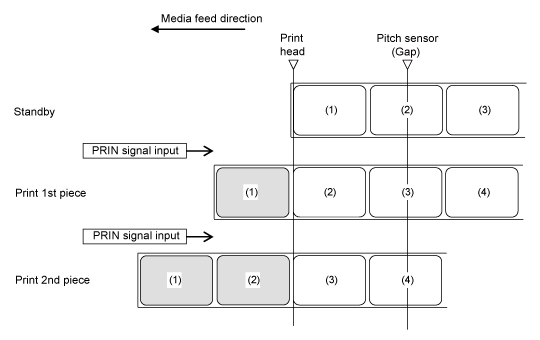

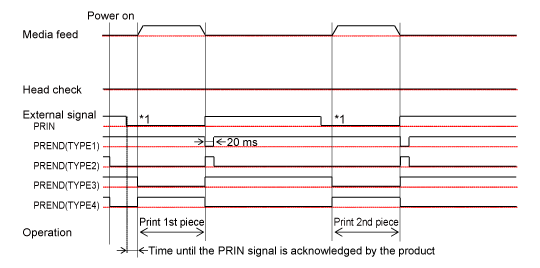

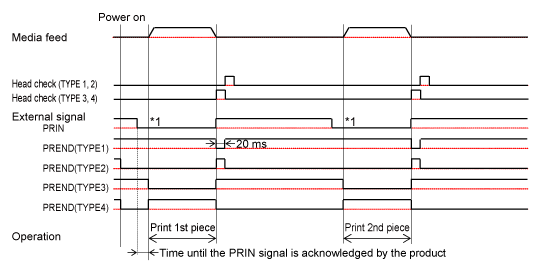

TOP > Adjusting the Product > Flow of Printing Operations > Operations in Continuous Mode > Continuous Mode, with Media Sensor Enabled, and with Pulse Input Continuous Mode, with Media Sensor Enabled, and with Pulse Input Operation • The figure above shows the reference position when the Gap sensor is used. Timing Chart (Without Head Check) Timing Chart (With Head Check) *1 Keep the PRIN (Print Start) signal until the PREND (Print End) signal is outputted. Back to top
