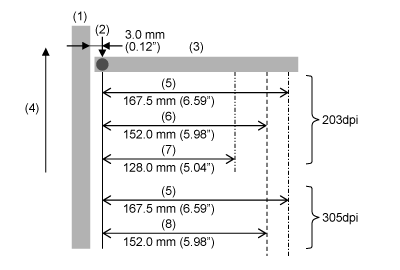

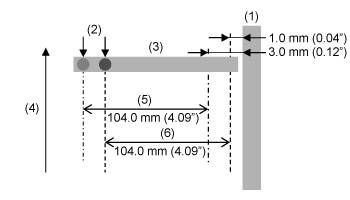

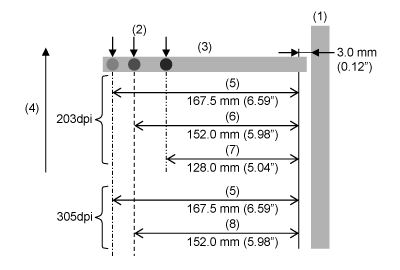

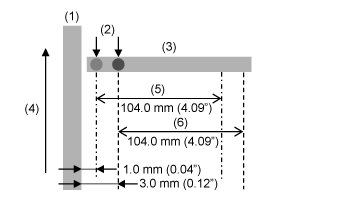

TOP > Adjusting the Product > Printable Area Printable Area The printable area of the product is as follows: S84NX • For Standard/Left-Hand Type (1) Frame (2) Base reference position for printing (3) Print head (4) Media feed direction (5) Printable area (Left-justify) (6) Printable area (Standard) • For Opposite/Right-Hand Type (1) Frame (2) Base reference position for printing (3) Print head (4) Media feed direction (5) Printable area (Standard) (6) Printable area (Left-justify) S86NX • For Standard/Left-Hand Type (1) Frame (2) Base reference position for printing (3) Print head (4) Media feed direction (5) Printable area (Standard) (6) Printable area (M8460Se compatible) (7) Printable area (M8485Se compatible) (8) Printable area (M8465Se compatible) • For Opposite/Right-Hand Type (1) Frame (2) Base reference position for printing (3) Print head (4) Media feed direction (5) Printable area (Standard) (6) Printable area (M8460Se compatible) (7) Printable area (M8485Se compatible) (8) Printable area (M8465Se compatible) Related Topics Product Orientation Back to top
