Loading the RFID Tag Model

By registering settings, such as the antenna positions and writing/reading frequency outputs for each RFID tag you are using, you can easily change the product's settings when you switch RFID tags.

RFID tag models can be selected from the [Interface] > [RFID] > [RFID Tag Model] > [Load] menu and applied to the product.

The procedure to load the RFID tag model is as follows:

1.	When the product is in Online mode, press the button on the operator panel to change to Offline mode.

2.	Press the button to show the [Settings] menu.

3.	Press the / buttons to select [Interface], and then press the button.

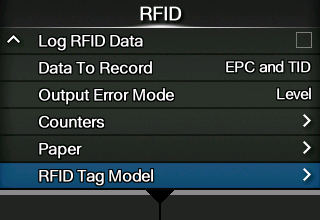

4.	Press the / buttons to select [RFID] > [RFID Tag Model], and then press the button.

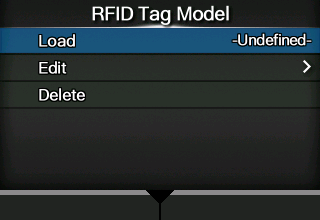

5.	Press the / buttons to select [Load], and then press the button.

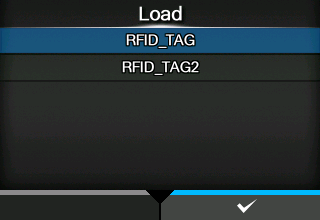

6.	Press the / buttons to select the RFID tag model to load.

7.	Press the button or button to confirm.

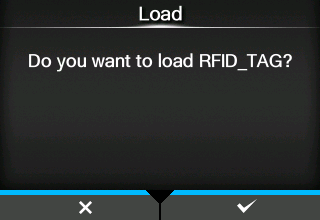

8.	Press the button on the confirmation screen.

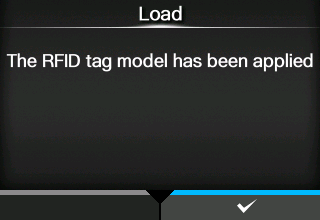

9.	Press the button on the completion screen.

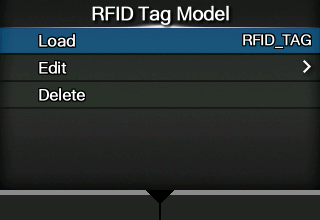

The settings loaded from the RFID tag model are applied to the product. The name of the loaded RFID tag model appears on the right side of [Load] on the [RFID Tag Model] menu.

• From the [RFID Tag Model] > [Edit] menu, you can change settings in registered RFID tag models or manually register new RFID tag models.
