TOP > Maintenance > Replacing Consumable Parts > Replacing the Fan Filter
Replacing the Fan Filter
View the video here (it has no audio).
•
For Standard/Left-Hand Type
•
For Opposite/Right-Hand Type
The fan filter prevents atmospheric debris from being drawn into the product.

View the video below for the procedure.
Standard/Left-Hand Type
Opposite/Right-Hand Type
1.
Make sure that the product is powered off, and disconnect the power cord from the AC outlet.
2.

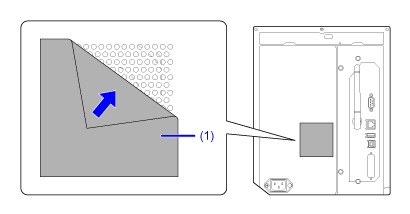

Peel off the old fan filter (1) from the rear of the product.
3.
Clean the product to remove any adhesive residue on the surface.
4.
Remove the backing paper from the new fan filter (1) and paste the fan filter (1) over the fan exhaust holes.
