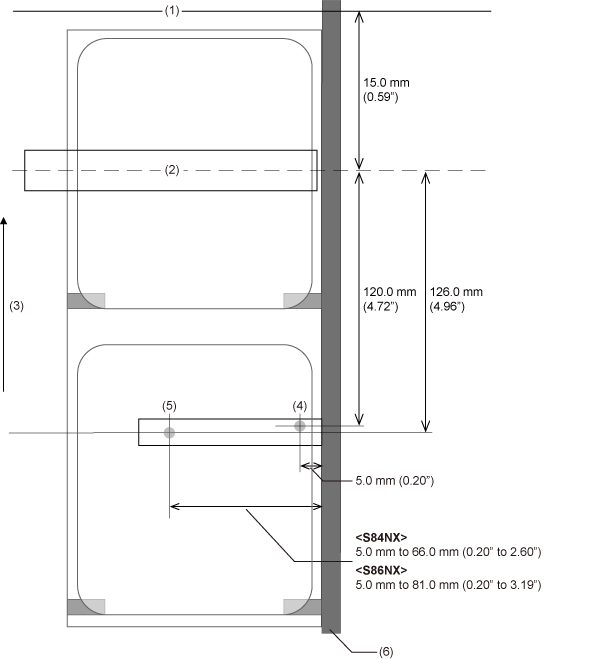

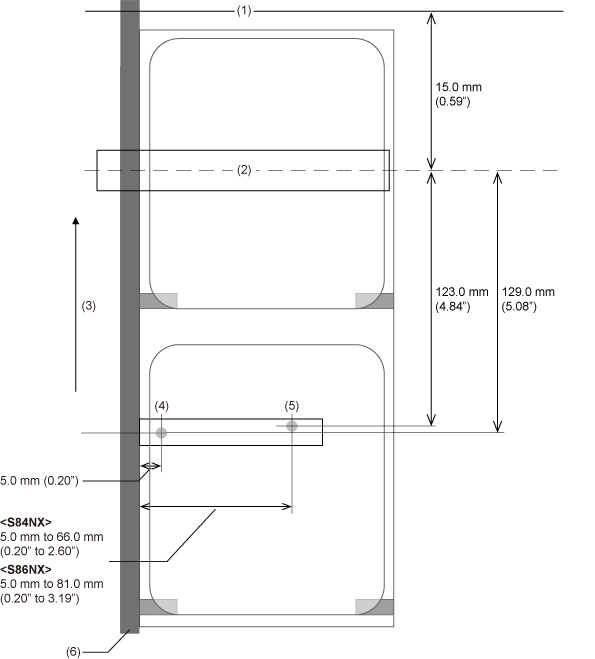

TOP > Adjusting the Product > Media Sensor Positions and Media Stop Positions Media Sensor Positions and Media Stop Positions The positions of the media sensors and the media stop positions are as follows: Standard (American | Right Hand) / International | Left Hand Type (1) Media stop position for dispense operation (2) Print head (3) Media feed direction (4) I-mark sensor (5) Gap sensor (6) Frame Opposite (American | Left Hand) / International | Right Hand Type (1) Media stop position for dispense operation (2) Print head (3) Media feed direction (4) I-mark sensor (5) Gap sensor (6) Frame Related Topics Product Orientation Manually Setting the Print Mode Back to top
