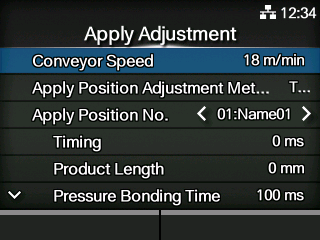

[Apply Adjustment]

Set the applicator.

The setting items are as follows:

Conveyor Speed

Set the speed of the conveyor.

Apply Position Adjustment Method

Set the method for adjusting the position to apply the label in reference to the package.

Apply Position No.

Select the maximum 20 names of the location registered for the position the label is applied in which are registered the timing or position, the length of the package, the pressure bonding time, and the blowing time, and then change the name.

Timing

Set the delay time at which to apply the label after the [Activate Apply] signal or the [Activate Apply (Level)] signal is input.

◦	Appears only if you have selected [Timing] in the [Apply Position Adjustment Method] menu.

Position

Set the delay position at which to apply the label after the [Activate Apply] signal or the [Activate Apply (Level)] signal is input.

◦	Appears only if you have selected [Position] in the [Apply Position Adjustment Method] menu.

Product Length

Set the length of the package.

Pressure Bonding Time

Set the pressure bonding time for the label.

Blowing Time

Set the blowing time for the label.

Liner Rewinding Adjustment

Set to adjust the force when rewinding the liner.

Setting 1 to Setting 5

This is an extra setting.
