TOP > Various Settings of the Product > The Product's [Settings] Menu > [Printing] Menu > [Advanced] > [Head Base Position]

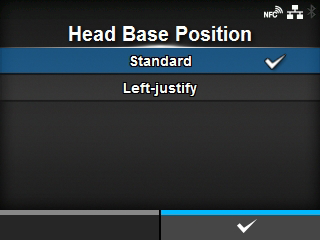

[Head Base Position]
Set the position used for the base reference point for printing.
The options are as follows:
Item
CL4NX
CL6NX
[Standard]
Print with a standard base reference point.
Print with a standard base reference point.
[Left-justify]
Move the base reference point 2 mm (0.08") to the left toward the product.
Expand the width of the printable area (maximum print width) to 167.5 mm (6.59").
Move the base reference point 2 mm (0.08") to the left toward the product.


•
A message prompting you to restart the product will appear on the Online/Offline screen if you have made any changes. In such a case, reboot the product to apply the settings.
