TOP > Various Settings of the Product > The Product's [Settings] Menu > [Printing] Menu > [Advanced] > [Finisher Feed]

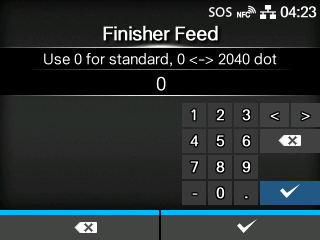

[Finisher Feed]
Set the media feed amount for Tear-off, cut and dispense stop. Set the media feed amount based on the print head position of 0.
The actual media feed amount is the value of [Offset] + [Finisher Feed].
The setting range varies depending on the print resolution of the product.
The setting range is as follows:
Resolution
CL4NX
CL6NX
203 dpi
(1 dot = 0.125 mm (0.0049"))
0 to 2040 dots
0 to 2040 dots
305 dpi
(1 dot = 0.083 mm (0.0033"))
0 to 3060 dots
0 to 3060 dots
609 dpi
(1 dot = 0.042 mm (0.0017"))
0 to 6120 dots
-

•
When [Printing Mode] is set to [Use Ribbon], the length of label backfeed needs to be under 30 mm (1.18"). If it is over 30 mm (1.18"), the end of the ribbon may be falsely detected.
•
A message prompting you to restart the product will appear on the Online/Offline screen if you have made any changes. In such a case, reboot the product to apply the settings.

Related Topics
Setting Value Input or Selection
