TOP > Various Settings of the Product > The Product's [Settings] Menu > [Printing] Menu > [Advanced] > [Adjustments] > [Pitch Offset]

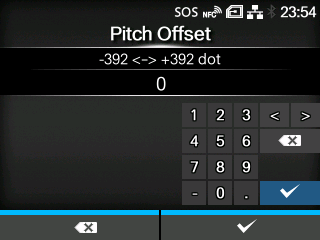

[Pitch Offset]
Pitch Offset adjusts the offset position and the pitch position at the same time.
Set the value '+' to move the offset and pitch positions in the direction opposite to the feed direction and '-' to move in the feed direction.

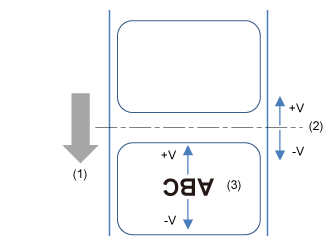

(1) Feed direction
(2) Offset position (backfeed/stop position for Tear-off/Cut/Dispense operation)
(3) Pitch position (leading edge of media position that decides the vertical print position)
The setting range varies depending on the print resolution of the product.
The setting range is as follows:
Resolution
CL4NX
CL6NX
203 dpi
(1 dot = 0.125 mm (0.0049"))
-392 to 0 to 392 dots
-392 to 0 to 392 dots
305 dpi
(1 dot = 0.083 mm (0.0033"))
-588 to 0 to 588 dots
-588 to 0 to 588 dots
609 dpi
(1 dot = 0.042 mm (0.0017"))
-1176 to 0 to 1176 dots
-

•
When you have selected [Cutter] in the [Print Mode] menu, and you increase this setting value in the '-' direction, some unnecessary labels may feed. In this case, set a slower print speed.
