[Pitch]
Pitch adjusts the print start position thus effects the vertical print position placement.

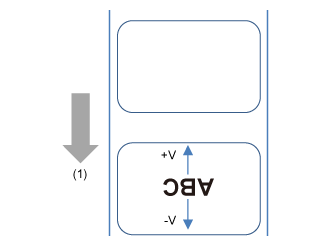

Set the value '+' to move print position in the direction opposite to the feed direction and '-' to move in the feed direction.
(1) Feed direction
The setting range varies depending on the print resolution of the product.
The setting range is as follows:
Resolution
CL4NX
CL6NX
203 dpi
(1 dot = 0.125 mm (0.0049"))
-30 to 0 to 30 dots
-30 to 0 to 30 dots
305 dpi
(1 dot = 0.083 mm (0.0033"))
-45 to 0 to 45 dots
-45 to 0 to 45 dots
609 dpi
(1 dot = 0.042 mm (0.0017"))
-90 to 0 to 90 dots
-
