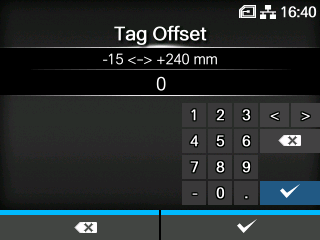

[Tag Offset]

Set the position at which to start writing data to the inlay. Data is written to an inlay on each tag at the point where the inlay passes over the product's RFID antenna, which is at the distance, from the print start position, specified in this setting.

The setting range varies depending on the setting for [Encoding Action].

Settings for [Encoding Action]	Setting range
[Normal Action]	-15 to +240 mm (-0.59" to 9.45")
[Feed Action]	-15 to +15 mm (-0.59" to 0.59")

• When [Encoding Action] is set to [Normal Action] and the value in [Tag Offset] is -1 mm (-0.04") or less, the length of the RFID tag needs to be set accurately. Set the length of the RFID tag accurately in [Pitch Size]. • (Supported by build version 1.15.6 or later firmware) When [Encoding Action] is set to [Normal Action] and [Tag Offset] is set to a minus value, printing an RFID tag when the length set in [Pitch Size] and the length of the RFID tag in use are different by 1.5 mm (0.06") or more will cause an RFID label pitch size error and printing will be stopped. Set the length of the RFID tag accurately in [Pitch Size].

---
