Loading the Media Roll (Printing in Continuous Mode/Tear-Off Mode)

View the video here (it has no audio).

• The print head and its surroundings are hot after printing. Be careful not to get burned. • Touching the edge of the print head with your bare hand could cause injury.

　

View the video below for the procedure.

1.	Press the cover open button (1) to open the top cover (2).

2.	While pushing the slide lever (3), move the media guide (4) which is on the right side to adjust its width to match the width of the media roll.

• Do not load the media roll yet. • Change the flap position of the media guide in accordance with the core diameter of the media roll.

3.	Load the media roll.

Set the media roll with the print side (5) facing the print head (6) and push it diagonally from the front.

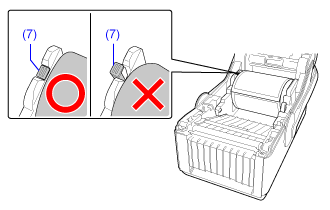

If the media roll is loaded correctly, the indicator part (7) of the media guide that moved to side returns to its original position.

• There are two wind directions for the media. The illustration is for face-out media.

4.	Pull out the media and pass it below the tabs (8).

5.	Close the top cover.

Push both ends of the top cover, and close it firmly until it clicks.

• When closing the top cover, be careful not to pinch your fingers.

6.	Tap [FEED].

The media is fed to the print start position.

7.	Tap [PRINT] to change to Online mode.

---
