TOP > Adjusting the Product > Adjusting the Base Reference Point > Adjusting the Media Stop Position
Adjusting the Media Stop Position
Set the [Offset] in the [Printing] > [Advanced] > [Adjustments] menu to adjust the media stop position (for cutter/dispenser/tear-off mode).

•

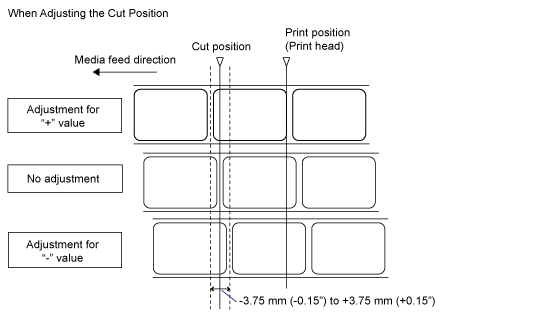

The above cut reference position for printing indicates the label stop position when the media sensor is set to Gap sensor.
•
The tear-off and dispensing positions are adjustable in the same manner.
1.
Tap on the Home screen or Offline screen to show the [Settings] menu.
2.
Input the password if it is enabled.
3.
Tap [Printing].
4.

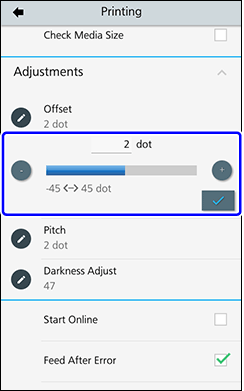

Tap [Offset] under [Advanced] > [Adjustments] menu.
5.
Change the setting value.
The setting range is from -45 to +45 dots.

•
The length of 1 dot is 0.083 mm (0.0033").
•
You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu.
6.
Tap to save the setting value.
7.
Press the / (Standby/Home) button to show the Home screen.
8.
Press the / (Standby/Home) button again to change to Online mode.
You can print to check the adjusted stop position.

Related Topics
Logging In to/Logging Out of the Settings Mode
[Unit]
