Print Mode

You can change the print mode of the product according to its usage and installed options.

The product has the following print modes:

[Continuous]

Prints the specified number of media. The media remains in position for printing at all times.

[Tear-Off]

After printing the specified number of media, the product feeds the last printed media so that it is fully extended out of the product’s front for removal. After printing, tear off the media manually. The media will be back to the print head position to start the next printing.

[Linerless tearoff]

The product feeds each printed media so that it is fully extended out of the product’s front for removal. After the printed media is torn off manually, the next media retracts and positions itself for printing. When using a linerless label, install the optional linerless kit and select [Linerless tearoff] instead of [Tear-Off].

[Dispenser]

Peels the liner from the printed label as the label is fed to the product’s front. Once the printed label has been removed from the product for application, the next label retracts and positions itself for printing.

[Cutter]

Cuts each media while printing the specified number of media. You can specify this option only if you have installed the cutter kit or the linerless cutter kit.

• You need to specify the type of the cutter you are using in the [Printing] > [Cutter Type] menu.

[Linerless cutter]

Prints and cuts each media. After the cut media is removed, the next media retracts and positions itself for printing. You can specify this option only if you have installed the cutter kit or the linerless cutter kit. When using a linerless label, install the optional linerless kit and select [Linerless cutter] instead of [Cutter].

• You need to specify the type of the cutter you are using in the [Printing] > [Cutter Type] menu.

[Partial cutter]

Cuts each media leaving a part of the media while printing the specified number of media. You can specify this option only if you have installed the partial cutter kit.

• You cannot set the [Print Mode] if [Auto-mode] is enabled.

　

Change the print mode according to the following procedure:

1.	Tap on the Home screen or Offline screen to show the [Settings] menu.

2.	Input the password if it is enabled.

3.	Tap [Printing].

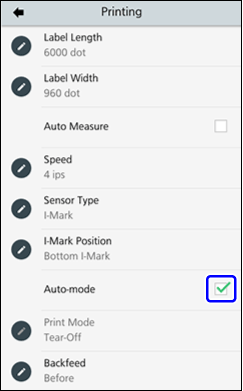

4.	Disable [Auto-mode].

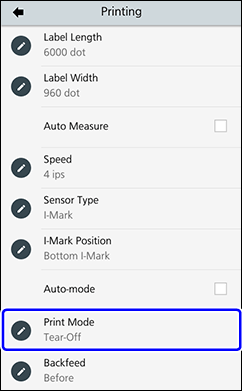

5.	Tap [Print Mode].

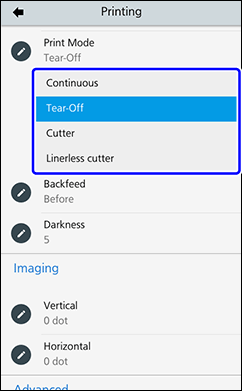

6.	Tap the print mode.

• The selectable print modes differ in accordance with the installed option. • When printing in cutter mode or linerless cutter mode, remove each label after printing. Also, when printing in tear-off mode with any cutter option installed, remove each label after printing, regardless of the cutter type. • When printing in cutter mode or partial cutter mode, use labels that are more than 30 mm (1.18") long.

---
