Media Sensor Positions and Media Stop Positions

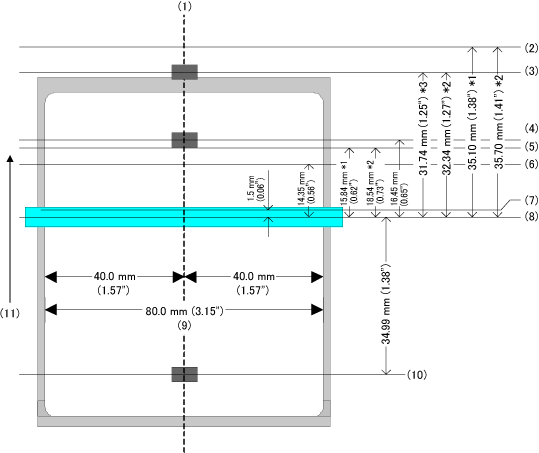

The positions of the media sensors and the media stop positions with the various print modes are as follows:

*1 With the optional cutter kit, partial cutter kit, or linerless cutter kit (Type 1)

*2 With the optional linerless cutter kit (Type 2)

*3 With the optional linerless cutter kit (Type 1)

　

(1) Center position

(2) Media stop position in tear-off mode (cutter)

(3) Linerless sensor position

(4) Dispenser sensor position

(5) Media stop position in cutter mode

(6) Media stop position in tear-off/dispenser mode (standard)

(7) Linerless backfeed position

(8) Print head

(9) Available print width

(10) Gap/I-mark sensor position

(11) Media feed direction

---
