Adjusting the Media Stop Position

Set the [Offset] in the [Printing] > [Advanced] > [Adjustments] menu to adjust the media stop position.

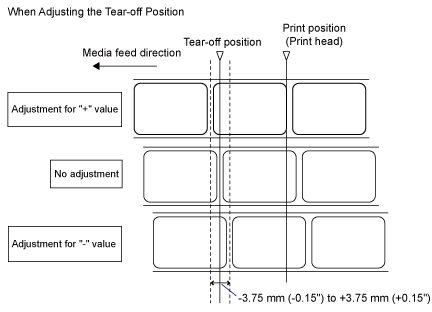

• The above tear-off position for printing indicates the label stop position when the media sensor is set to Gap sensor.

1.	When the product is in Online mode, press the button on the operator panel to change to Offline mode.

2.	Press the button to show the [Settings] menu.

• Input the password if it is enabled.

3.	Select [Printing] using the / buttons, and then press the button.

4.	Select the [Advanced] > [Adjustments] > [Offset] menu using the / buttons, and then press the button.

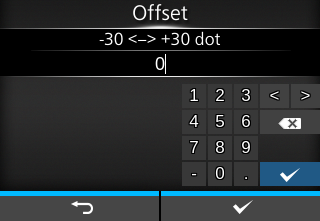

The [Offset] screen appears.

5.	Change the setting value. Press the /// buttons to select a number and then press the button to enter the number to the text box.

The setting range is from -30 to +30 dots.

• You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu.

6.	Press the button () to save the setting value.

7.	Press the button to change to Offline mode.

8.	Press the button again to change to Online mode.

You can print to check the adjusted stop position.

• While the print job is paused, the [Adjustments] menu appears instead of the [Settings] menu and you can adjust the media stop position.

---
