RFID Write with Dispense & Print Mode and Backfeed Before Printing (Tag Offset = 0)

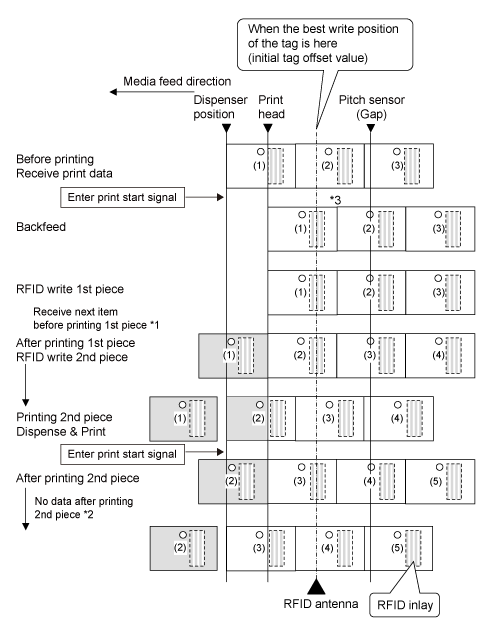

When the dispense & print mode is selected, RFID encoding is performed after backfeed at the print head position.

RFID tag offset cannot be used in the dispense & print mode. The setting value will be ignored even if tag offset is set. Also, RFID items and items that do not contain RFID commands cannot be printed mixed together.

Also, the RFID tag error print in the dispense & print mode is the same as the error print in the continuous or dispenser mode.

*1 If the next data is received before printing finishes, then the next print operation is done and dispensing stops at the dispensing position.

*2 If the next data is not completed before printing is finished, then blank media is fed and dispensing stops at the dispensing position.

*3 The EPC code write <IP0> command writes the data at this inlay position. The RFID read [DC2]PJ, printing tag data <TU>, and EPC/TID return <RU> commands acquire the information at this inlay position.

• If you have selected [Enabled] in the [Interface] > [External I/O] > [EXT I/O Re-print] > [Enhanced Reprint] menu, then it is the operation of dispenser mode when "0" is specified in the [Interface] > [RFID] > [Tag Offset] > [Tag Offset] menu.

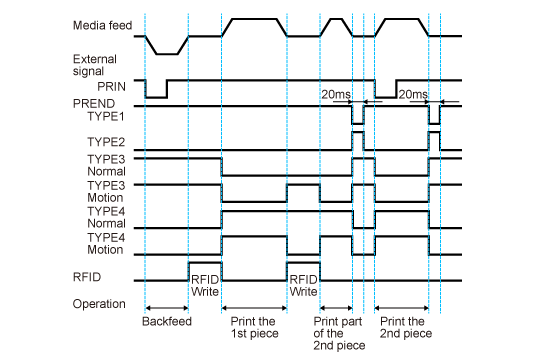

Timing Chart

Example) QTY2

---
